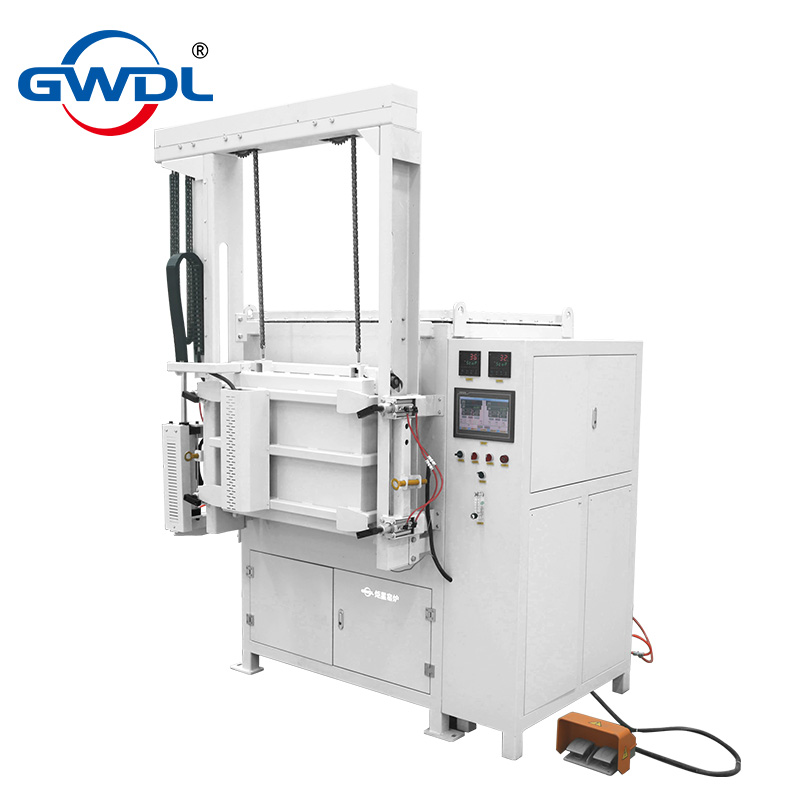

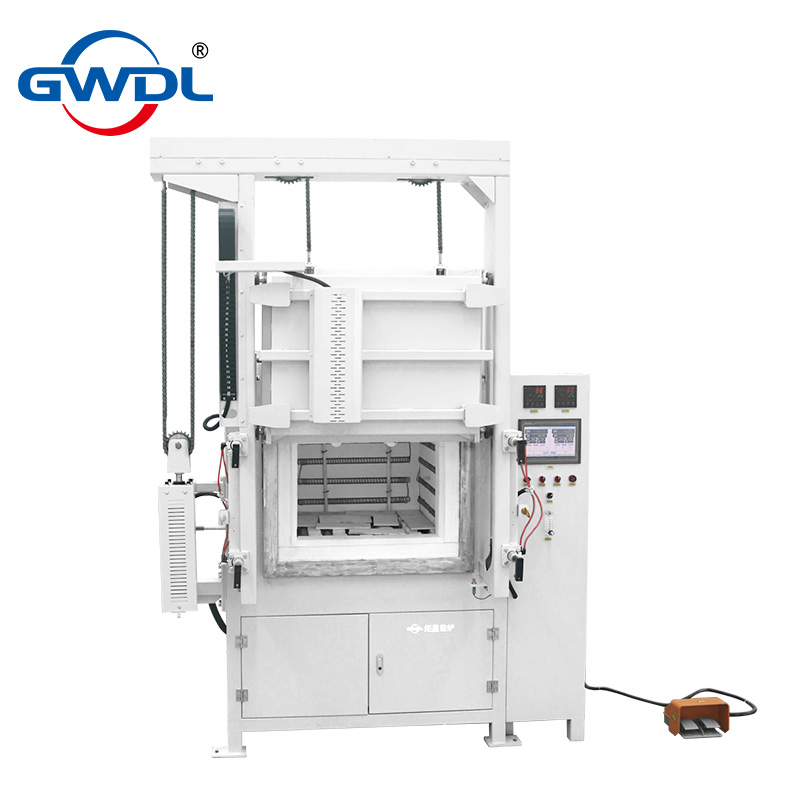

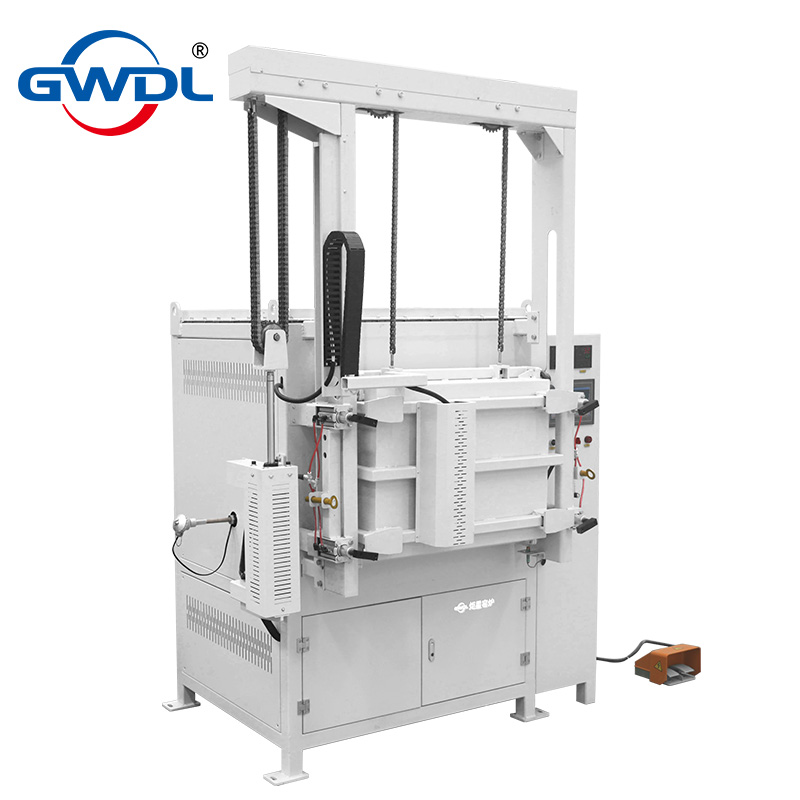

MUFFLE FURNACE

Temperature Performance

• Maximum / Long-term operating temperature: 1200°C / 1150°C

• Temperature control accuracy: ±1°C (no overshoot)

• Temperature uniformity: ±3°C (dual independent control systems)

• Heating rate: max. 30°C/min, min. 1°C/h

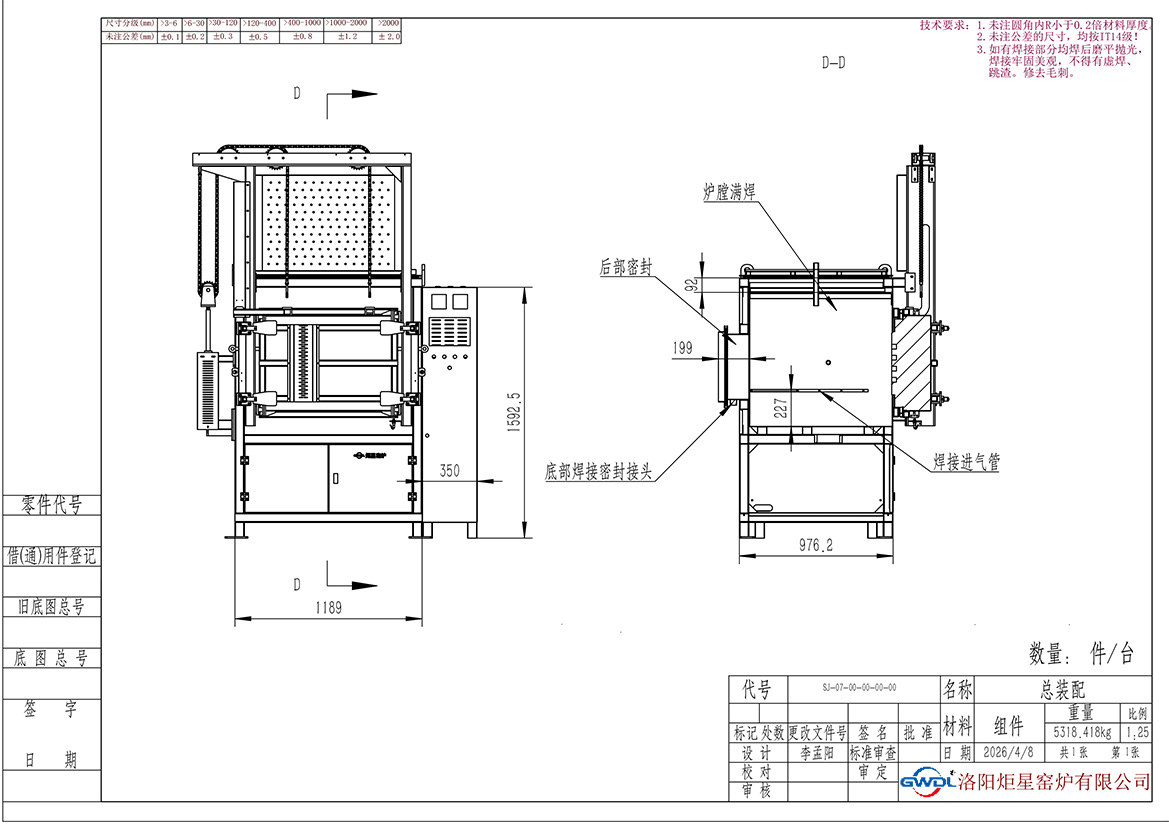

Chamber & Structure

• Chamber size (L×W×H): 600×400×400 mm

• Bottom plate: 310S heat-resistant steel plate, height 920mm

• Heating elements: high-temperature alloy resistance wire (sides + bottom)

• Furnace body: air-cooled double-layer structure

Atmosphere & Sealing

• Gases allowed: nitrogen, argon, carbon monoxide, oxygen, etc.

• Gas control: Siemens PLC + two-channel flow meter

• Gas inlets: 16 inlets (8 on each side)

• Door operation: pneumatic lift + pneumatic lock, fully sealed

Auxiliary Equipment

• Loading cart: manual lift

• Energy efficiency: >80% energy saving compared to traditional furnaces

•
