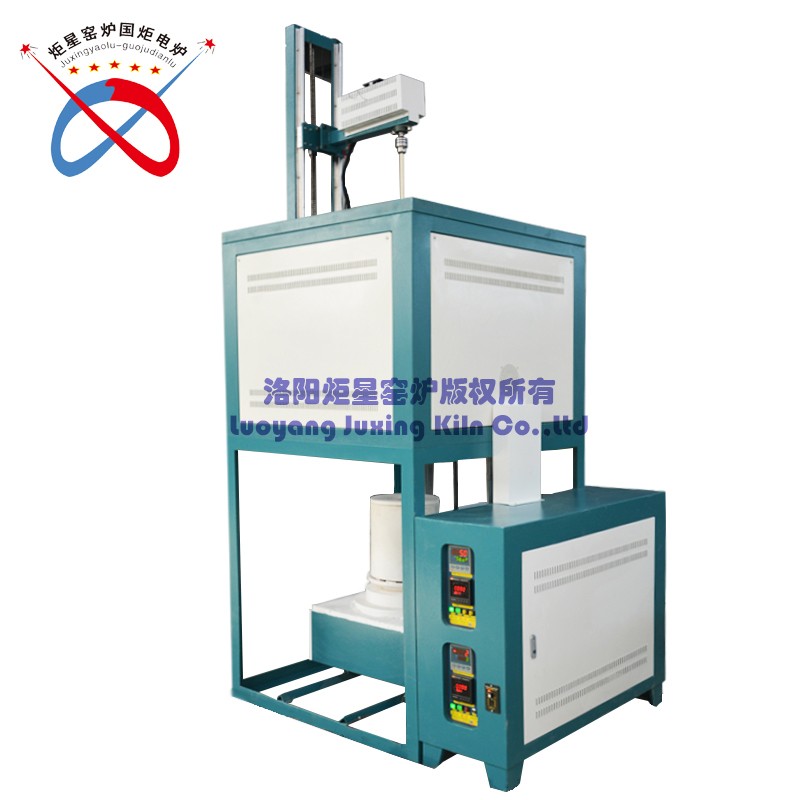

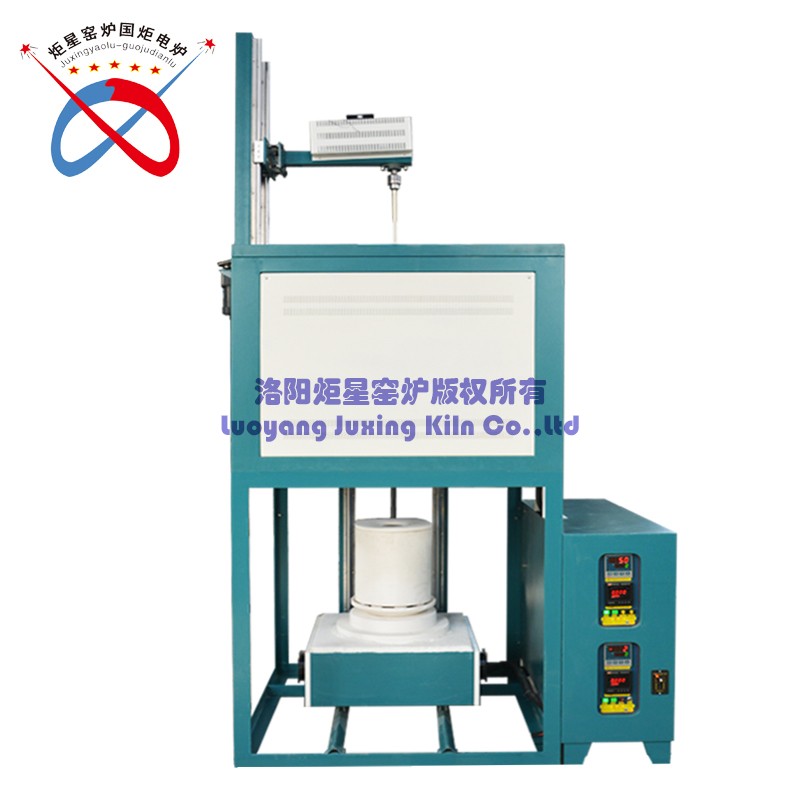

FRIT FURNACE

GWL Series High-Temperature elevator frit furnace equip with Loading platform(for the easy place the crucible, more suitable for large cubage requirements) the lifting system chooses precision screw mandrel, more stable and reliable, the crucible chooses high purity zirconium quartz (99.9%) more durable to use.

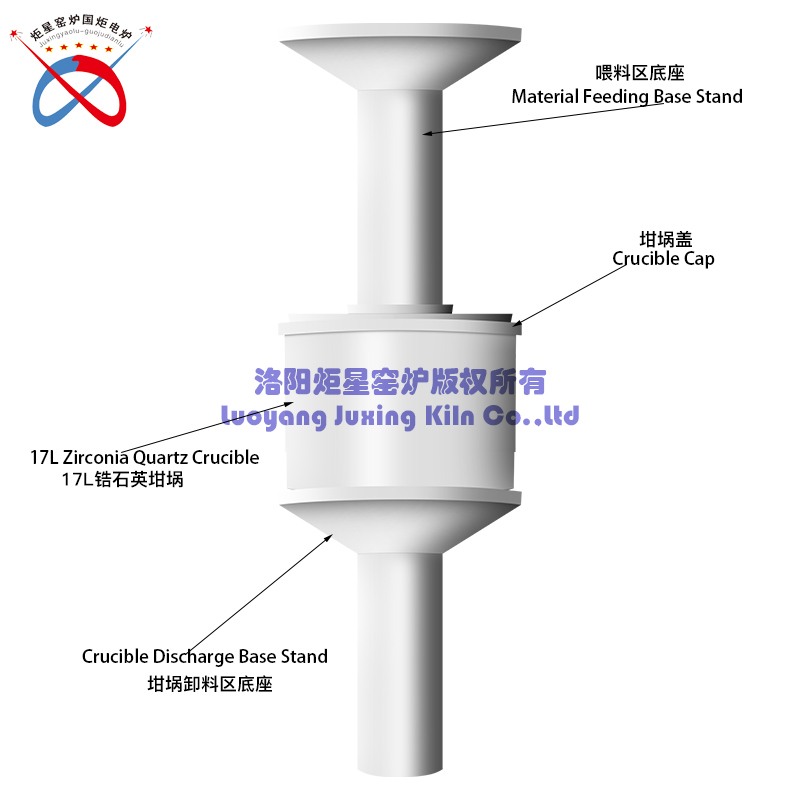

Crucible Display

Characteristic：

Intelligent control,Electromechanical transmission.

Standard features

• 1750 °C maximum operating temperature; normal operating temperature range 800 °C - 1700 °C

• Maximum crucible cubage 17L (Can be customized)

• Double Layer Furnace Shell, With Air Cooling

• Double heating system(Loading platform+Furnace chamber)

• Simplicity for operation, programmable, Pid automatic modify, automatic temperature rise, automatic temperature retaining, automatic cooling, unattended operation;

• High-speed temperature rise rate. (temperature rise rate 1℃/h to 30℃/min can be modified);

• Using high purity alumina rod as the stirring rod(corundum rod), adjustable speed.

Options (specify these at time of order)

• Control software and system.

• Multi-face heating

• Anti-corrosion

• Multi-temperature control

• Touch screen control




*Content may be subject to modifications or corrections
