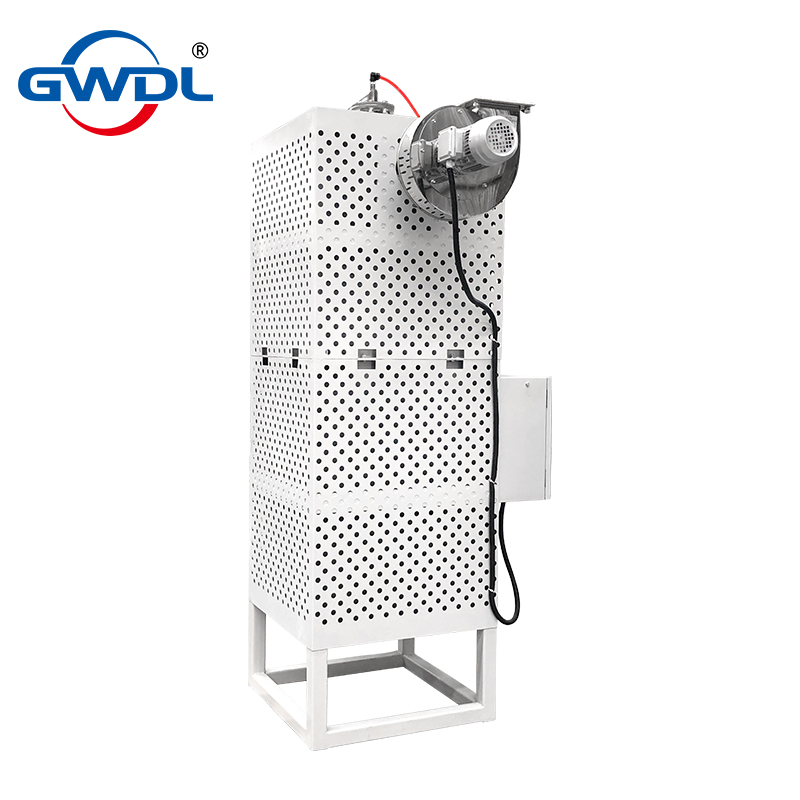

INDUSTRIAL KILN

Main parameter index:

1. Maximum temperature: 1000 degrees

2, normal use temperature: 750 degrees

3, waste gas treatment capacity: 80 cubic meters/hour, treatment efficiency of 95%

4. Voltage: 380ACV

5, power: 16kw

6, pipe material: 304 stainless steel

7, temperature measuring element: K type thermocouple

8, temperature control accuracy: ±3 degrees

9, control mode: programmable, PID self-tuning +SCR

10, heating rate: 50 degrees /min

About:

The principle is to oxidize the organic matter in the waste gas into the corresponding carbon dioxide and water at high temperature, so as to purify the waste gas, and recover the heat released when the waste gas is decomposed. The decomposition efficiency of the waste gas in the three-chamber series VOC purification furnace is more than 99%, and the heat recovery efficiency is more than 95%.

Working principle

The principle is to heat the organic exhaust gas to 760 degrees Celsius (depending on the composition), so that the VOC in the exhaust gas is decomposed into carbon dioxide and water in oxidation. The high temperature gas generated by oxidation flows through the special ceramic heat accumulator, which heats up the ceramic and "accumulates heat", which is used to preheat the incoming organic waste gas. Thus saving the heating consumption of exhaust gas heating. Ceramic regenerator should be divided into two (including two) more than, each regenerator in turn through heating - heat release - cleaning and other procedures, cycle, continuous work. After the "heat release" of the regenerator, an appropriate amount of clean air should be introduced immediately to clean the regenerator (to ensure that the VOC removal rate is above 98%), and the "heat storage" procedure can only be entered after the cleaning is completed. Otherwise, the residual VOCs are discharged to the chimney with the flue gas, which reduces the treatment efficiency.

Service exhaust gas

Types of organic waste gas used: hydrocarbon organic waste gas such as alkanes, olefins, ketones, ethers, esters, aromatics, benzene and so on.

High organic concentration, small air volume

Exhaust gases contain a variety of organic components, or organic components often change

Exhaust gases containing ingredients prone to catalyst or activity decay

Performance characteristics

Almost all exhaust gases containing organic compounds can be treated

Can deal with low air volume, high concentration of organic waste gas

The flexibility of handling organic waste gas flow is very high

It can adapt to the changes and fluctuations of the composition and concentration of VOC in organic waste gas

It is not sensitive to a small amount of dust and solid particles in the exhaust gas

Highest thermal efficiency of all thermal combustion purification methods (for 95%)

Self-heating operation is achieved without adding auxiliary fuel at suitable exhaust gas concentrations

High purification efficiency (more than 99% in three chambers)

The maintenance workload is small, the operation is safe and reliable

The organic sediment can be periodically removed, and the heat accumulator can be transformed

The pressure loss of the whole unit is small

Long service life of the device

Scope of application

           Ceramic, target material, printing, drying, compounding and cleaning processes, ink, adhesive, coating agent, plate liquid, car wash water, plastic inner printing, plastic surface printing, film packaging printing, paper gravure printing, soft printing, screen printing, offset printing, letterpress, mimeograph, pad printing, metal printing, horse printing iron, commercial rotary printing, sheet printing and other packaging printing waste gas treatment.
