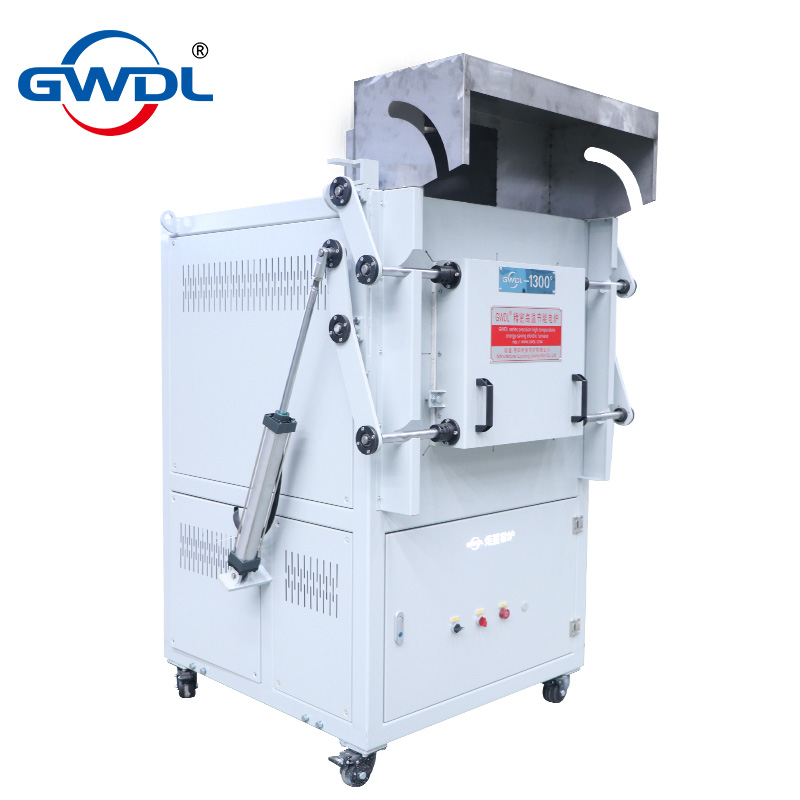

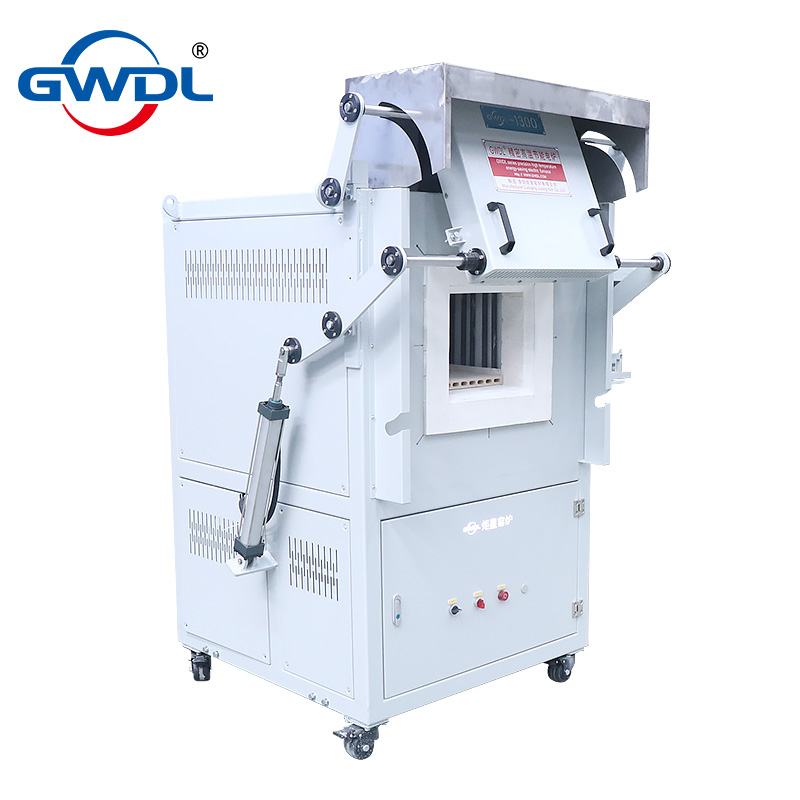

MUFFLE FURNACE

Maximum operating temperature: 1200℃

Long-term operating temperature: 1200℃

Temperature control range: 80℃ to 1200℃

Furnace chamber dimensions: 430mm (depth) ×250mm (width) ×200mm (height)

Voltage: 380V  20kW

Temperature measuring element: K-type thermocouple (temperature measuring range: 0-1350℃)

Heating element: U-shaped silicon carbide rod

Installation method: Vertically installed on the inner wall of the furnace chamber

Temperature control accuracy: ±1℃

Uniformity of furnace temperature: ±5℃

Heating rate: Fastest: 15℃/ minute, slowest: 1℃/ hour

Touchscreen: 7 inches
