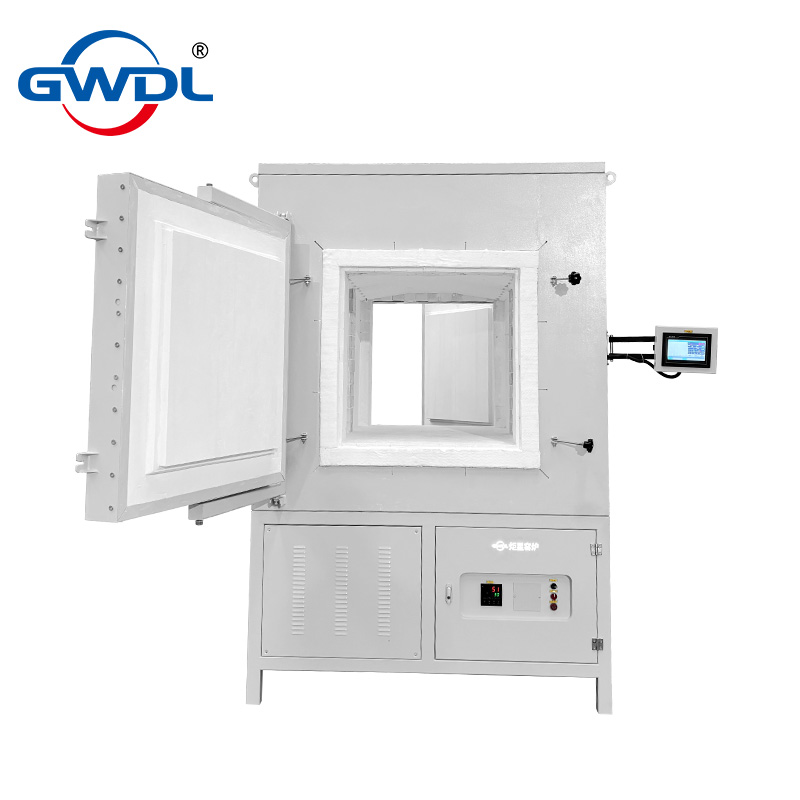

1600℃ DOUBLE-DOOR BOX-TYPE ELECTRIC FURNACE

Product Name: Box-type Electric Furnace (Muffle Furnace)


Model: GWDL-XL

Specification: 1600 degrees


Technical parameters

Maximum operating temperature: 1600°C

Long-term operating temperature: 1500°C

Temperature control range: 100-1700°C

Voltage: 380V, 50Hz     Power: 120kW

Furnace chamber dimensions: 1200mm (length) ×800mm (width) ×800mm (height)

Temperature control accuracy: ±1°C

Temperature measuring element: Platinum-rhodium thermocouple

Material of the heating element: silicon molybdenum rod

Installation position of the heating element: Heating on both sides

Heating rate: 20°C/ minute (nonlinear)

Furnace body structure and material

The inner tank is made of vacuum-formed high-purity alumina fiber material, which has excellent heat preservation performance.

Furnace shell temperature: ≤45°C

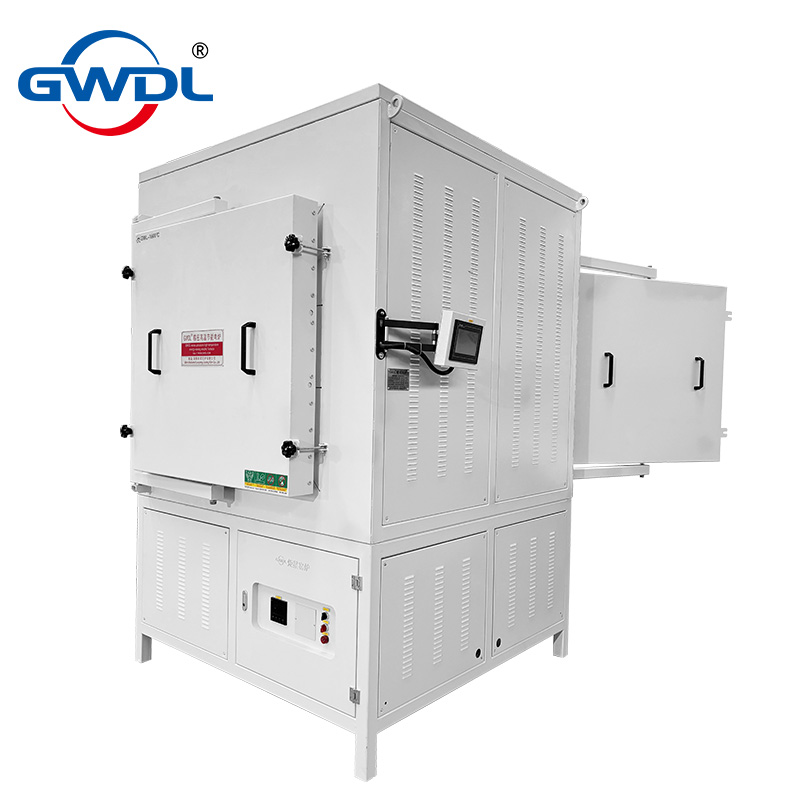

Door opening method:   It opens in both front and rear directions, rotates 90 degrees to open, and is equipped with an elastic locking device.


Safety protection

Dual-loop control and protection, featuring overshoot, overshoot, phase loss, overvoltage, overcurrent, over-temperature and other protection functions.

The automatic power-off function upon door opening ensures operational safety.

Other features

The furnace door seal design ADAPTS to thermal expansion and contraction, effectively maintaining heat.

The cooling system can prevent the high-temperature oxidation of heat-generating components.
