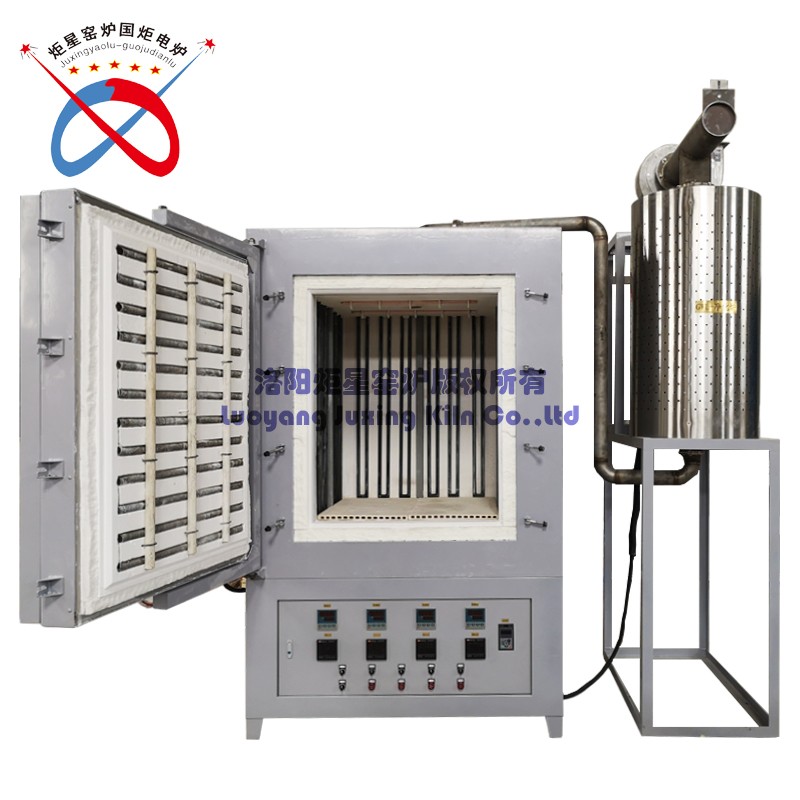

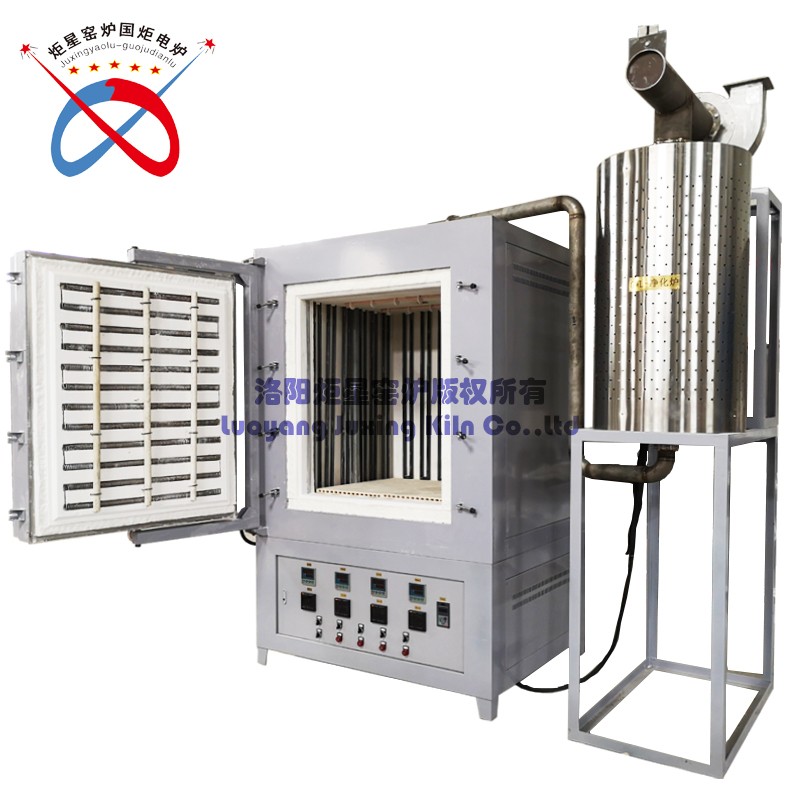

MUFFLE FURNACE

  The function of a thermal degreasing furnace is to cost-effectively remove tooling oils from metal worked components or heat exchangers by vaporizing the oil. To meet air quality and other environmental requirements, a thermal oxidizer system can be incorporated into the oven. Our R&D Department can provide testing in collaboration with your machine tool oil supplier to help you develop a thermal degreasing process. Each Industrial furnace project undergoes a comprehensive evaluation of every production requirement. The assessment includes areas such as production goals, part configuration and construction, part mass, temperature profile, and facility location or elevation.

Degrease Furnace Standard Features

• Model：GWL-DF

• Design Temperature：1200℃

• Normal Using Temperature：1000℃-1200℃

• Furnace chamber dimension：800*900*1100mm（L×W×H）(Can be customized)

• Temperature Controller：Import program intelligent temperature control instrument (optional with touch screen control)

• Heating element: Superalloy resistance wire+silicon carbide rod (Five direction heating method)

• Temperature Uniformity：≤±5℃

• Furnace lining materials: High purity alumina fiber with multi-layer structure.

• Power rate: 75KW

• Exhaust gas purification method: Exhaust gas purification furnace

• Appearance Dimension：L=1200mm, L1=75mm, W=1550mm, H=2250mm




Exhaust gas Furnace Standard Features

• Maximum Temperature：1000℃

• Normal Using Temperature: 750℃

• Exhaust Gas treatment Capacity: 80 cubic meters per hour, efficiency around 95%

• Voltage: 380ACV

• Power Rate: 16KW

• Pipe materials: 304 Stainless Steel

• Temperature measurement: K type thermocouple

• Temperature accuracy: ±3℃

• Control Method:Programmable, PID auto-tuning + SCR







*Content may be subject to modifications or corrections
