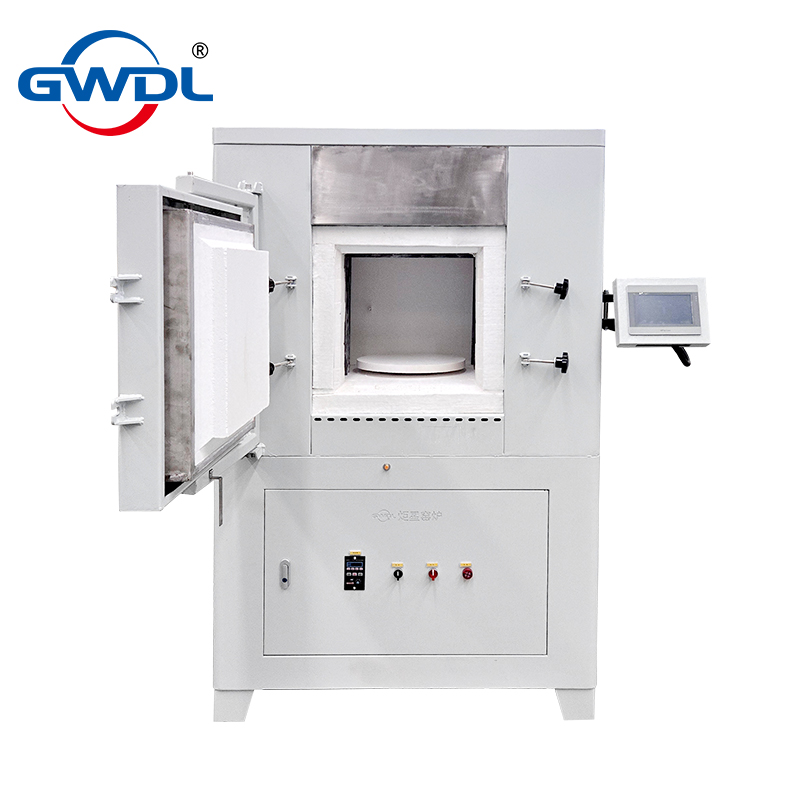

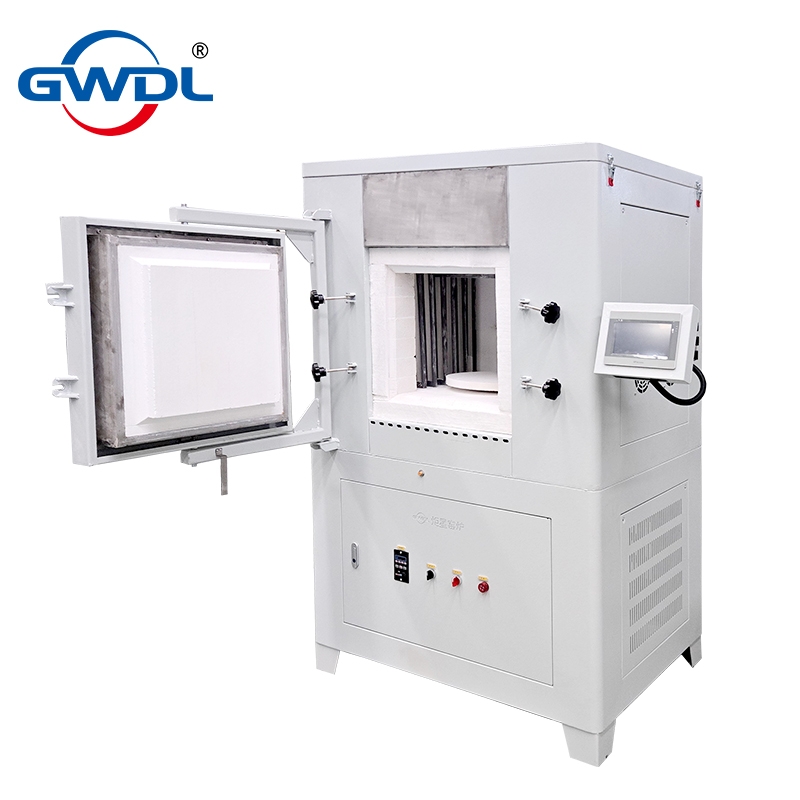

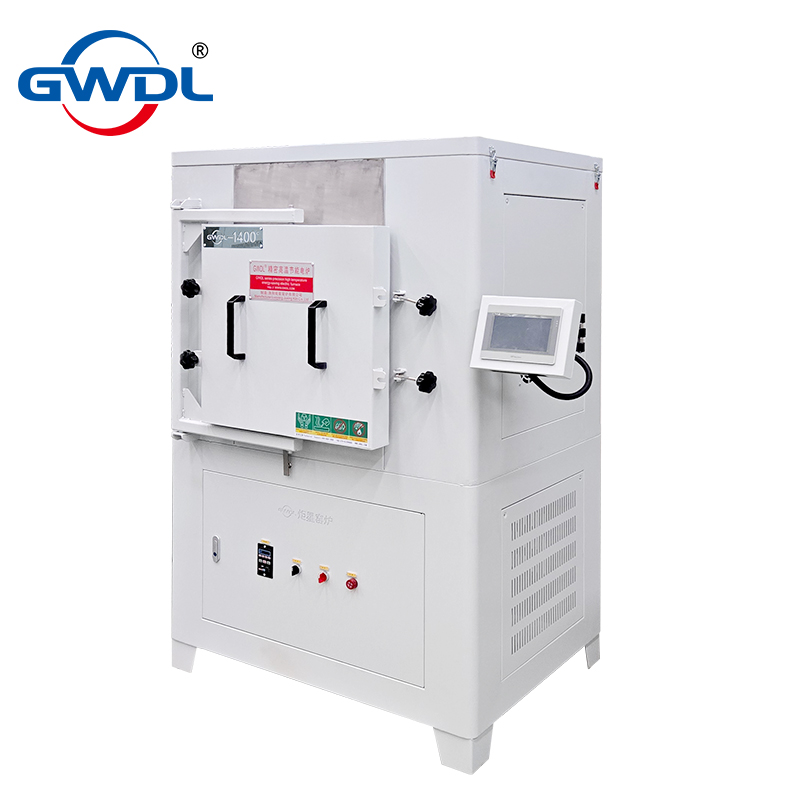

GWDL-1400 BOX-TYPE ELECTRIC FURNACE (WITH ROTATING MATERIAL TABLE)

High Temperature Furnace Technical Specifications (Bilingual Version)
高温炉技术规格（中英对照版）

No. 序号	Item 项目	Specification 参数
1	Furnace Chamber Dimensions 炉膛尺寸	> 400mm × 400mm × 400mm
2	Maximum Temperature 最高温度	> 1400℃
3	Temperature Control Accuracy 控温精度	≤ ±1℃
4	Sample Stage 样品平台	Electrically operated lifting function, stage diameter > 2400mm 具有电动升降功能，样品平台直径 > 2400mm
5	Temperature Uniformity 温度均匀性	≤ ±2℃ (within effective chamber volume) ≤ ±2℃（有效炉膛体积内）
6	Cooling Rate 降温速率	Adjustable 0.1–5℃/min (between 600℃–1200℃) 600℃~1200℃范围内 0.1~5℃/min 可调
7	Temperature Controller 温度控制器	Standard non-test controller with environment/time-based programming, auto-constant temperature & timing. Experimental data can be set/displayed via module. 标配非测试控制器，支持根据环境温度与时间设定，具备自动恒温与定时功能，实验数据可通过模块设定并显示
8	Protection Functions 保护功能	Door auto-export protection, temperature abnormality & equipment failure alarm, over-temperature auto power-off 炉门自动导出保护、温度异常与设备故障报警、超温自动断电
9	High Temperature Protection 高温防护	Surface temperature < 50℃ at maximum operating temperature 最高工作温度时外壳表面温度 < 50℃
10	Process Control System 工艺控制系统	Password setting for process parameter protection 支持密码设置，用于保护工艺参数

MUFFLE FURNACE
