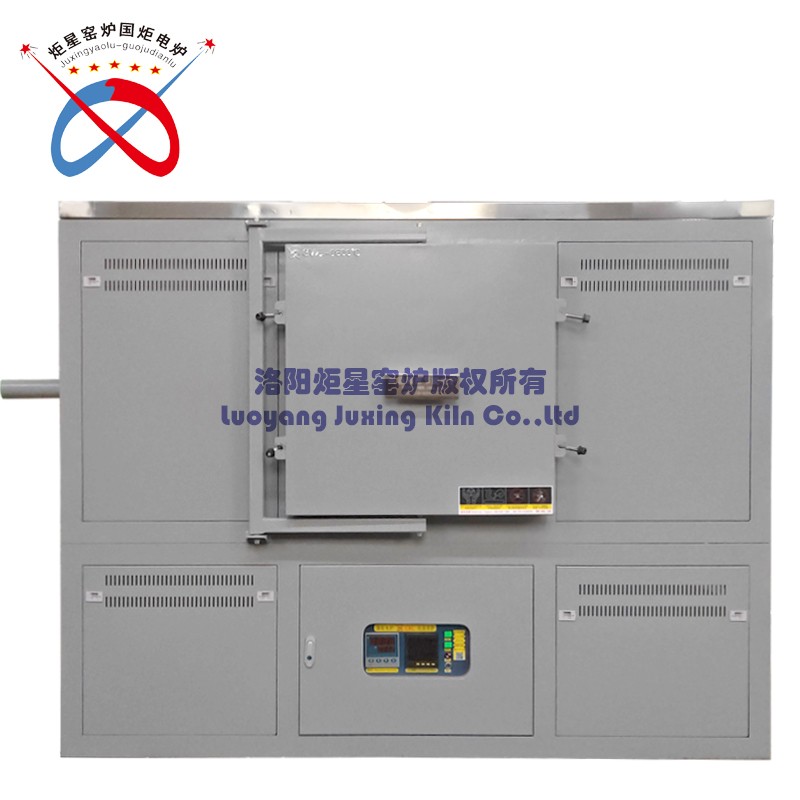

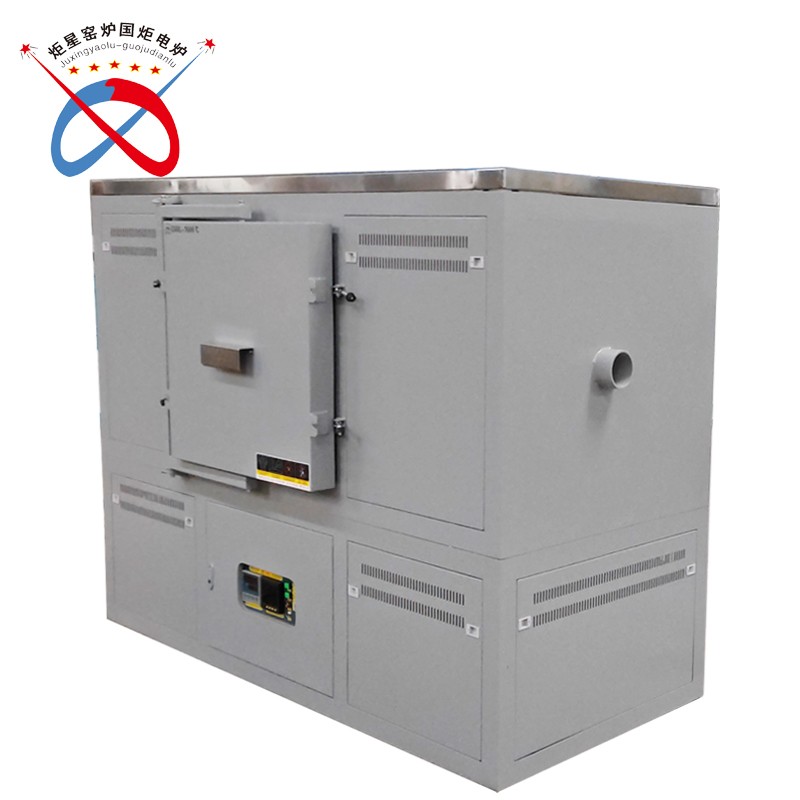

Muffle furnace and tubular two-in-one electric furnace

GWL-XBGA Series 1200℃ to 1800℃ High-temperature Muffle and tubular 2 in one electric Furnace, The combination of the control system and furnace chamber, Furnace lining using vacuum forming high purity alumina light material. and the heating tube length depends on the furnace chamber width dimension.


  Standard features

  • 1800°C maximum operating temperature

  • 4.5, 12, 16, 30, 45, 96, 200 or 420 litre chamber volumes(Special request can be customize)

  • Accepts work tubes with outer diameters up to 150 mm (Can be customized)

  • Heated lengths of 150, 250 or 500 up to 1200mm(Can be customized)

  • Double layer furnace shell air cooling ensure the surface temperature less than 45℃

  • Temperature accuracy :±1℃; Temperature uniformity:±1℃(Base on Heating zone size)

  • intelligent current and voltage meter temperature controller, simple to use, Programmable

  • Vacuum formed, low thermal mass insulation

  • Superalloy resistance wire or silicon carbide rod fitted as standard(above 1400℃ select silicon molybdenum rod )

  • Double layer protection(over current, over temperature and over voltage etc)

  • Without workbench support

Options (specify these at time of order)

  • Hot air circulation

  • Control software and system.

  • Multi-face heating

  • Anti-corrosion

  • Multi-temperature control

  • Touch screen control


*Content may be subject to modifications or corrections
