MUFFLE FURNACE

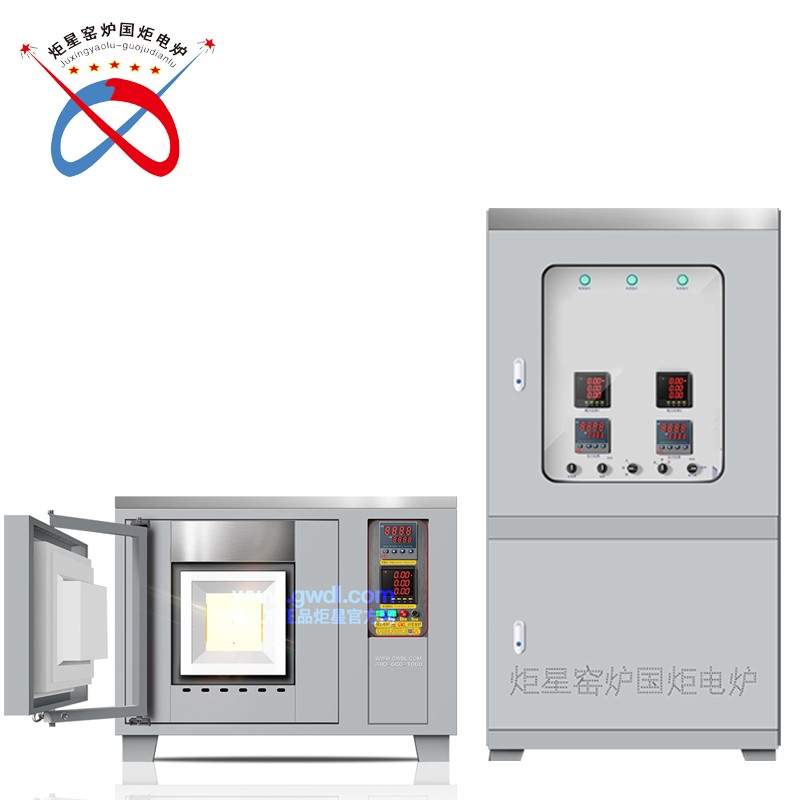

GWL-XBF Series 1200℃ to 1800℃ High-temperature Muffle Furnace, The Separation of the control system and furnace chamber, Furnace lining using vacuum forming high purity alumina light material.

  Standard features

• 1800°C maximum operating temperature

• 4.5, 12, 16, 30, 45, 96, 200 or 420 litre chamber volumes(Special request can be customize)

• Double layer furnace shell air cooling ensure the surface temperature less than 45℃

• Temperature accuracy ：±1℃; Temperature uniformity：±1℃(Base on Heating zone size)

• intelligent current and voltage meter temperature controller, simple to use, Programmable

• Vacuum formed, low thermal mass insulation

• Superalloy resistance wire or silicon carbide rod fitted as standard(above 1400℃ select silicon molybdenum rod )

• Double layer protection(over current, over temperature and over voltage etc)

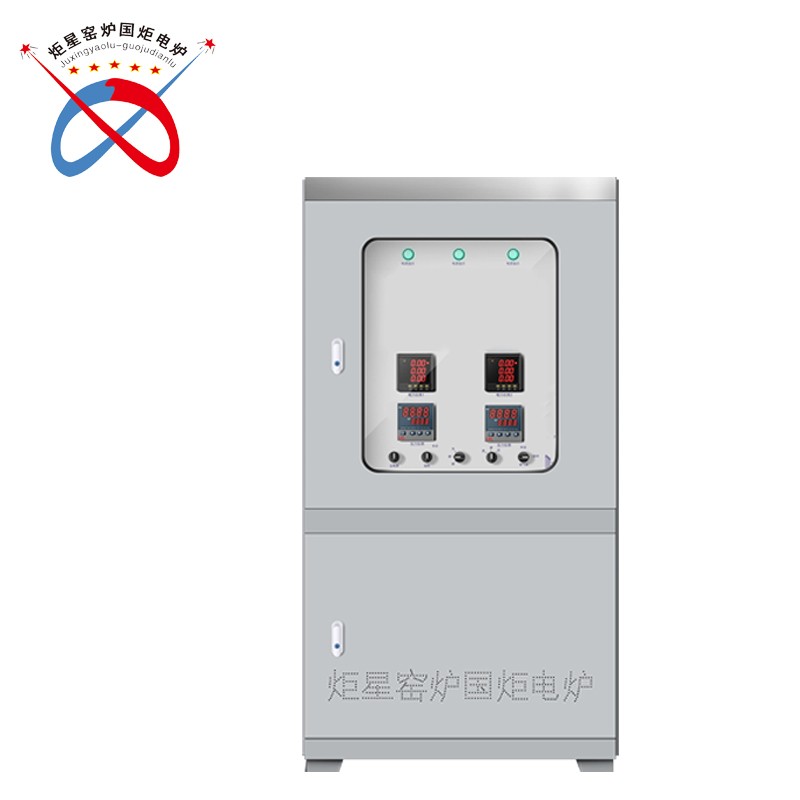

• Control cabinet can be centralized and unified management

Options (specify these at time of order)

• Hot air circulation

• Control software and system.

• Multi-face heating

• Anti-corrosion

• Multi-temperature control

• Touch screen control

*Content may be subject to modifications or corrections
