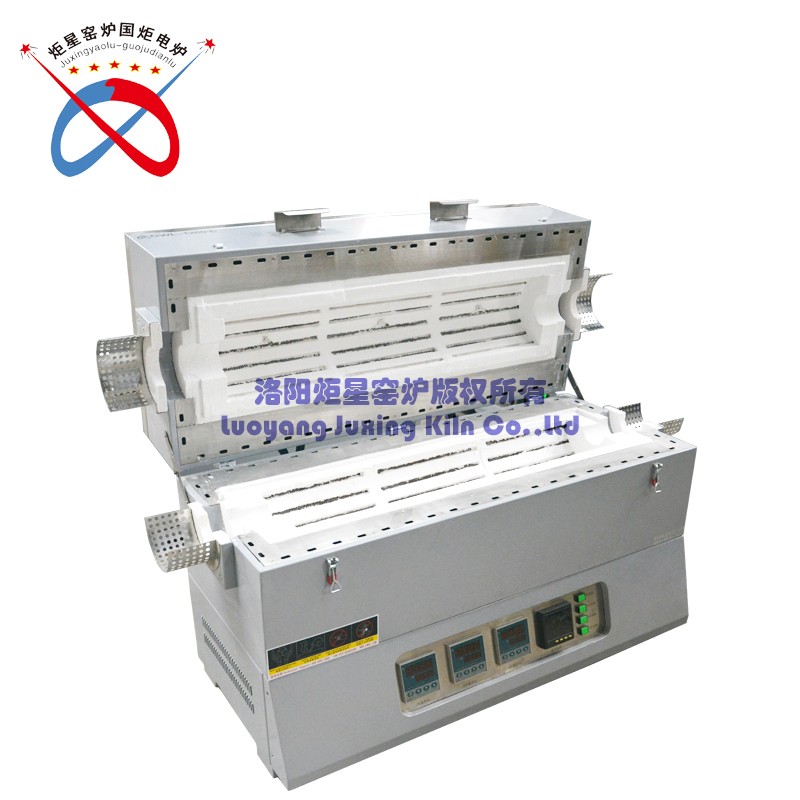

Large Multi-temperature Zone Tube Furnace(GWL-DXDWQGA)

  The range of GWL Large Multi-temperature Zone Tube Furnace offers the benefits of simultaneous heating and mixing of the sample, in addition to the use of an inert atmosphere.

  The furnaces are suitable for continuous material processing. Residence time in the heated zone depends on the degree of inclination and the rotating speed (which can be controlled by the customer) and the length of the working tube, in addition to the flow properties of the material.

  The design of the split furnace, drive system and feeder/ collection assemblies allows the work tube to be easily removed and replaced.

  The single zone and Multi-heating zone split tube furnaces have a maximum operating temperature of 1300 °C. All models are available with maximum heated lengths of 7500mm.

Standard features

  • 1300 °C maximum operating temperature; normal operating temperature range 650 °C - 1250 °C

  • Heated lengths options(3000、4000、5000、6000、9000、12000 and so on)

  • Heating tube diameter(80、90、100、110、150、220、300、350、500、600)

  • Single zone models fitted with PID controller with the single ramp to setpoint

  • Single or 3-zone models or multi-heating zone.

  • Adjustable inclination and rotation speeds offer the flexibility of residence time

  • Work tube rotation speed 1.5 to 10.0 revolutions per minute

  • The temperature controllers and associated equipment are housed within the integral control box

  • Wire elements in high-quality vacuum formed insulation ensures fast heat up, excellent temperature uniformity and short cooldown times

  • Vacuum degree can be -0.1Mpa


  Options (specify these at time of order)

  • Stainless steel (up to 1300 °C) or metallic (up to 800 °C) work tubes

  • 5 liter capacity heavy duty vibratory feeder and hopper

  • Inert gas packages available on request


*Content may be subject to modifications or corrections
