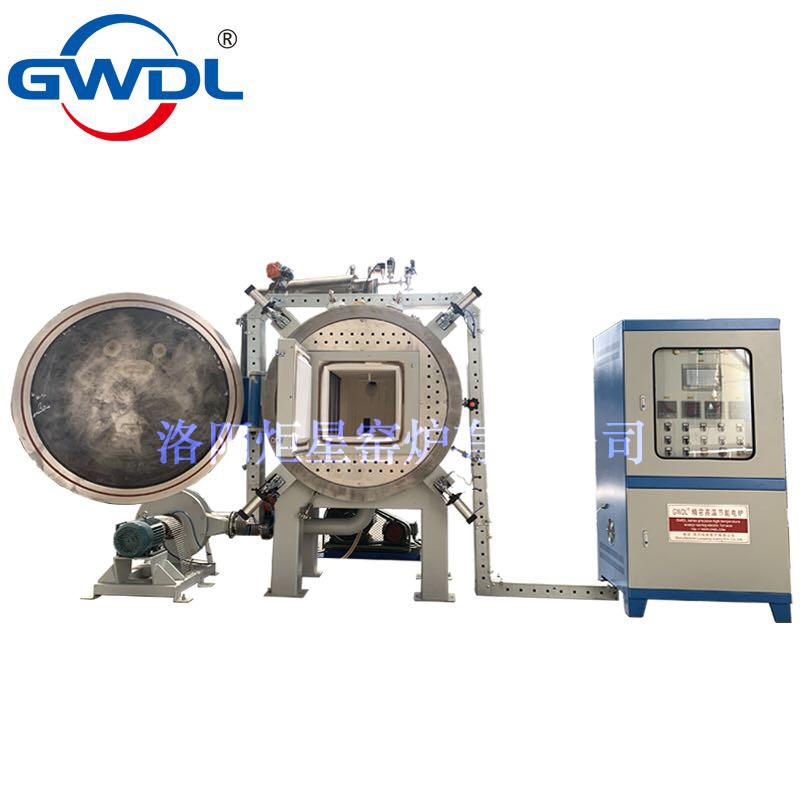

2020 New Arrived High Temperature High Vacuum Sintering Furnace

 The GWL series range of GWL-VSF high vacuum atmosphere furnaces made of silicon carbide rod or silicon molybdenum rod with high purity refractory materials, Equip with refrigerator to ensure the cooling requirements.

  The standard chamber dimension is from 200*150*150 MM to 800*500*500 MM, The special request can be customized.


Application Examples

  The carbon-free atmosphere, metal injection molding (MIM), metallization, sintering, Superhard alloy, graphite products, etc.

Standard features

  • The furnaces provide a precisely defined atmosphere with the highest possible purity

  • Vacuum degree maximum to -0.01Pa

  • Maximum using temperature up to 1700c

  • High temperature camera internal observation becomes possible

  • The furnaces offer the best possible vacuum

  • Hydrogen partial pressure operation if requested

  • Precisely controlled vacuum pumping speeds appropriate for powders

  • Data recording for quality management

  • Pressure protection

  • Less atmosphere influence

  • Cooling structure: Air + Water Cooling

  • Double layer loop protection. (Over temperature protection, Power supply protection and so on)

  • Touch screen control

Technical details

  Inside the chamber, heating elements are possibly customized base on customer required positioned at the loading platform, left, right, and top sides of the furnace chamber allowing for improved temperature uniformity. For larger volumes, Multi-face heating can maintain excellent temperature uniformity.

  The heating element long-term working temperature will change during the different atmosphere, more details please confirm with us before order.

*Content may be subject to modifications or corrections
