VACUUM FURNACE

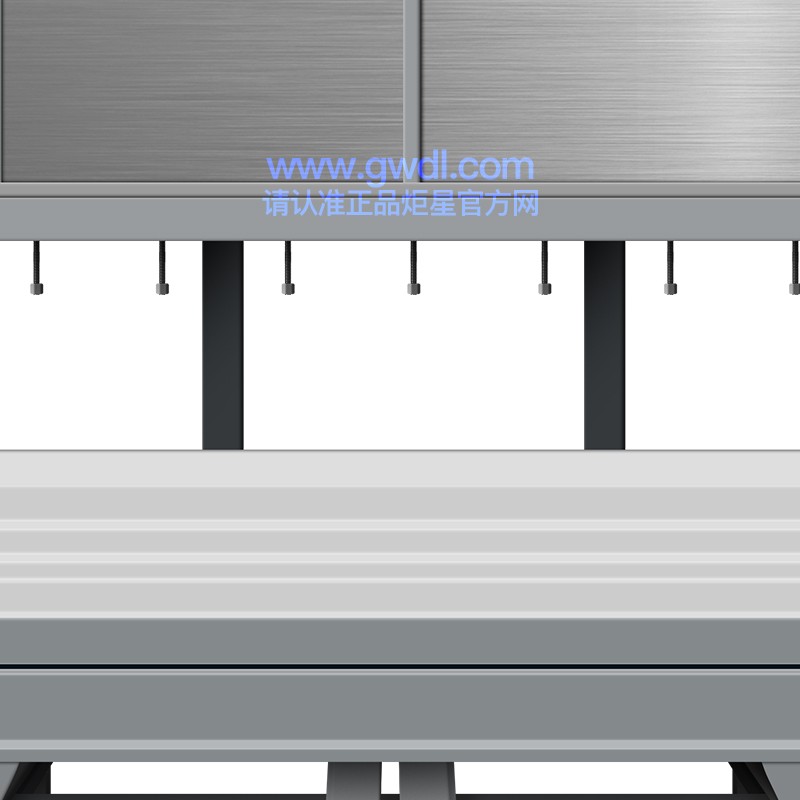

  The GWL series range of GWL-ZKSS high-temperature bottom loading vacuum furnaces consists of furnaces made of Silicon carbide rod or Silicon molybdenum rod with high purity refractory materials.

  The standard chamber dimension is from 800*500*500 MM to 1500*800*800 MM, The special request can be customized.

Application Examples

  The carbon-free atmosphere, metal injection moulding (MIM), metallization, sintering

Standard features

• The furnaces provide a precisely defined atmosphere with the highest possible purity

• The furnaces offer the best possible vacuum

• Hydrogen partial pressure operation if requested

• Precisely controlled vacuum pumping speeds appropriate for powders

• Data recording for quality management

• Pressure protection

• Less atmosphere influence

• Electric screw mechanical drive(Loading platform pass in and out speed adjustable)

• Cooling structure: Air + Water Cooling

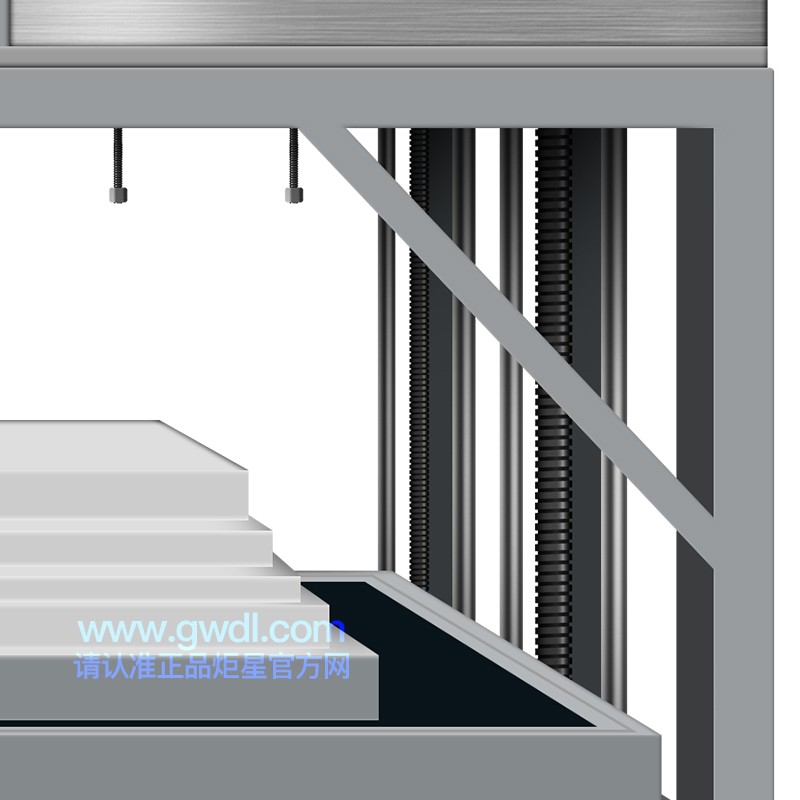

• Screw Mandrel Lift (Lifting speed adjustable)

Technical details

  Inside the chamber, heating elements are possibly customized base on customer required positioned at the loading platform, left, right, and top sides of the furnace chamber allowing for improved temperature uniformity. For larger volumes, Multi-face heating can maintain excellent temperature uniformity.

  The heating element long-term working temperature will change during different atmosphere, more details please confirm with us before order.

*Content may be subject to modifications or corrections
