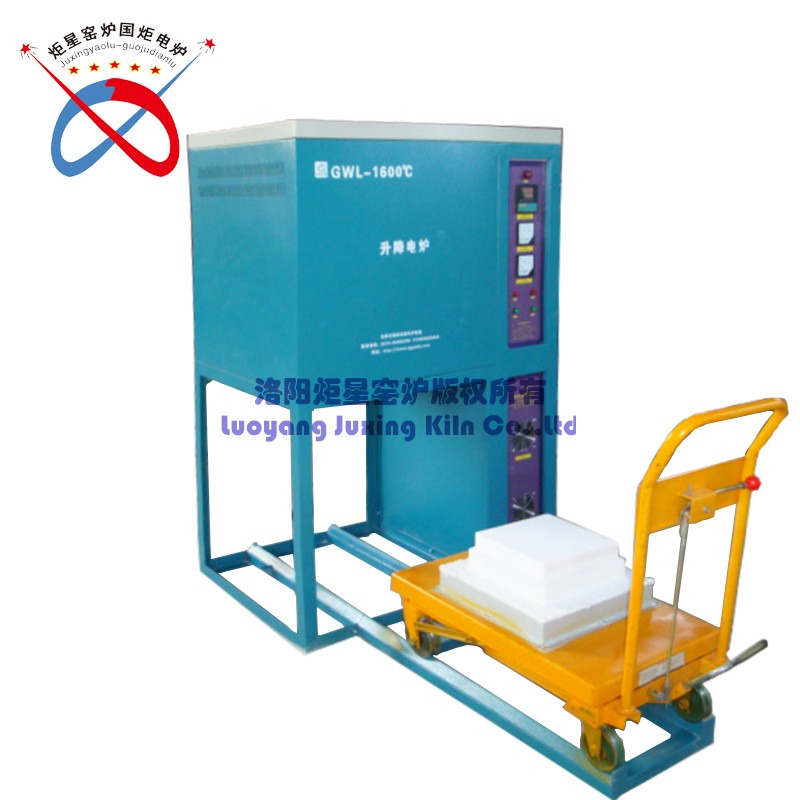

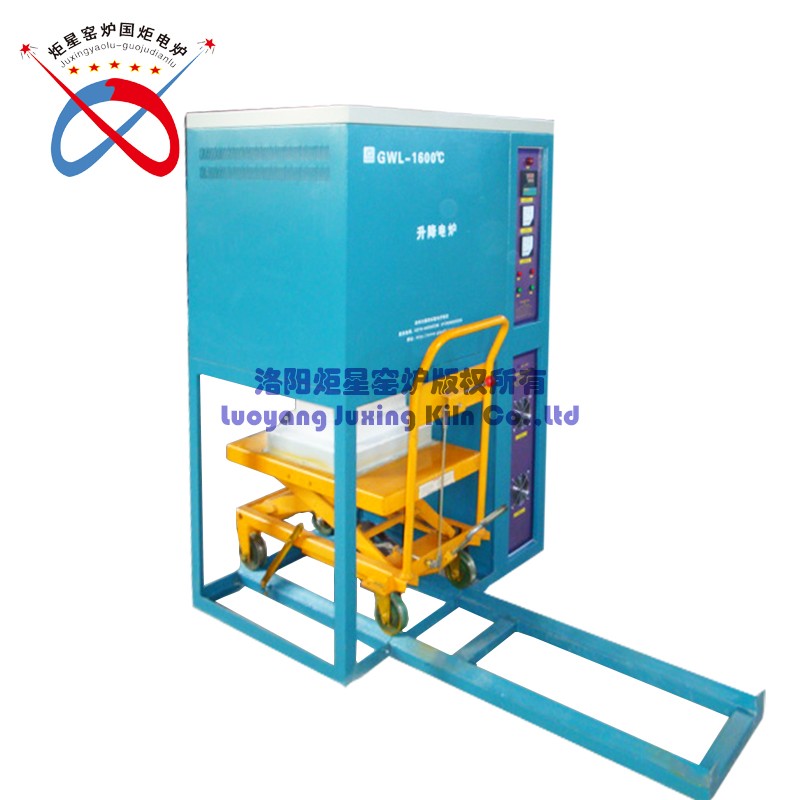

BOTTOM LOADING FURNACE

GWL Series high-temperature Elevating furnace, The combination of the control system and furnace chamber, Furnace lining using vacuum forming high purity alumina light material. Manual hydraulic lifting method, more convenient to use, more economical and practical.

Standard features

• 1700°C maximum operating temperature

• Furnace chamber dimension( 200*200*200, 300*300*300, 500*500*500mm)

• Double layer furnace shell air cooling ensure the surface temperature less than 45℃

• Temperature accuracy ：±1℃; Temperature uniformity：±1℃(Base on Heating zone size)

• Vacuum formed, low thermal mass insulation

• Silicon carbide rod or silicon molybdenum rod fitted as standard

• Double layer protection(over current, over temperature and over voltage etc)

Options (specify these at time of order)

• Control software and system.

• Multi-face heating

• Anti-corrosion

• Multi-temperature control

• Vacuum requirements

*Content may be subject to modifications or corrections
