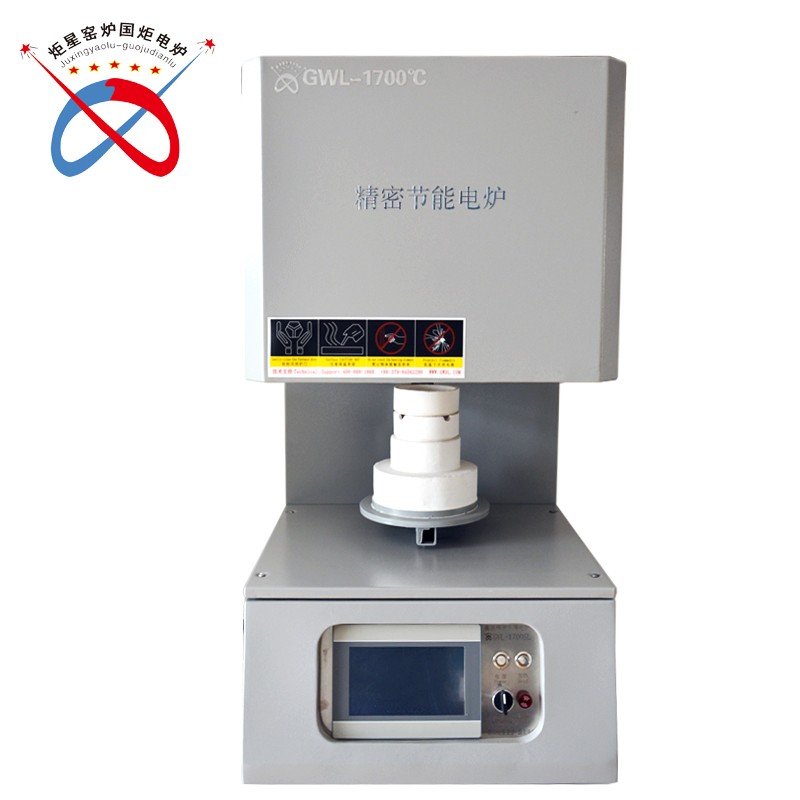

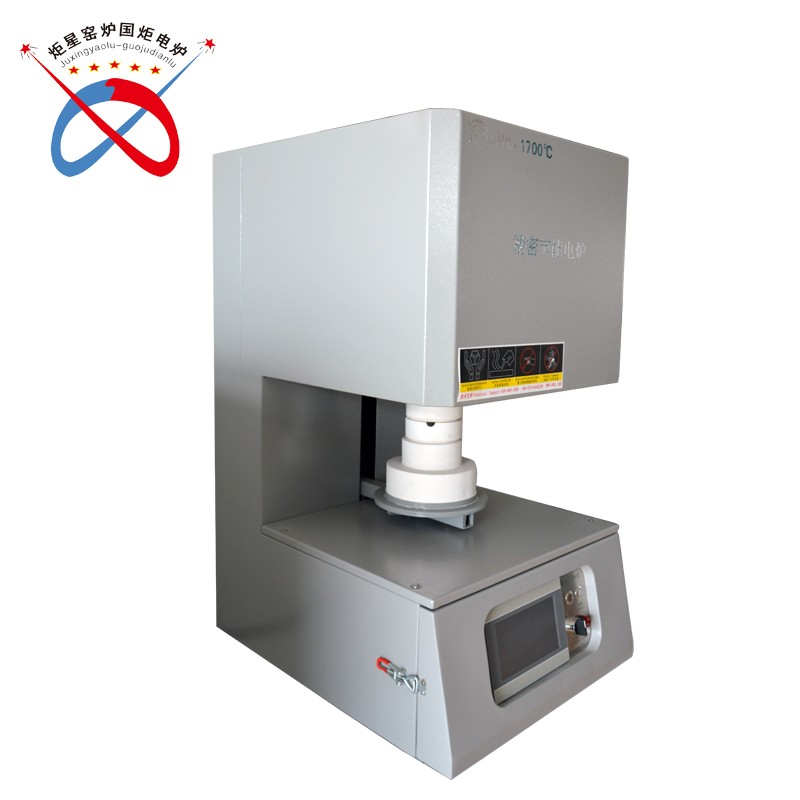

BOTTOM LOADING FURNACE

 GWL Series high-temperature miniature zirconia sintering furnace, The combination of the control system and furnace chamber, Furnace lining using vacuum forming high purity alumina light material.Touch screen control with screw mandrel lifting method, more convenience to use.

  Standard features

• 1700°C maximum operating temperature

• Furnace chamber diameter maximum 250mm

• Furnace chamber height maximum 300mm

• Double layer furnace shell air cooling ensure the surface temperature less than 45℃

• Temperature accuracy ：±1℃; Temperature uniformity：±1℃(Base on Heating zone size)

• intelligent touch screen control

• Vacuum formed, low thermal mass insulation

• Silicon carbide rod or silicon molybdenum rod fitted as standard

• Double layer protection(over current, over temperature and over voltage etc)

Options (specify these at time of order)

• Control software and system.

• Multi-face heating

• Anti-corrosion

• Multi-temperature control

• Vacuum requirements

*Content may be subject to modifications or corrections
