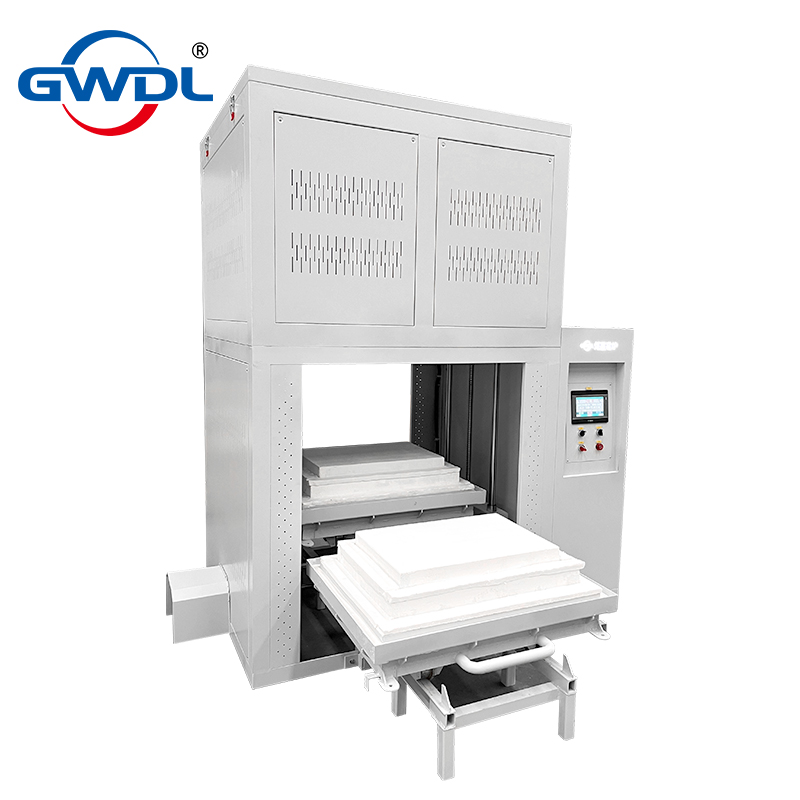

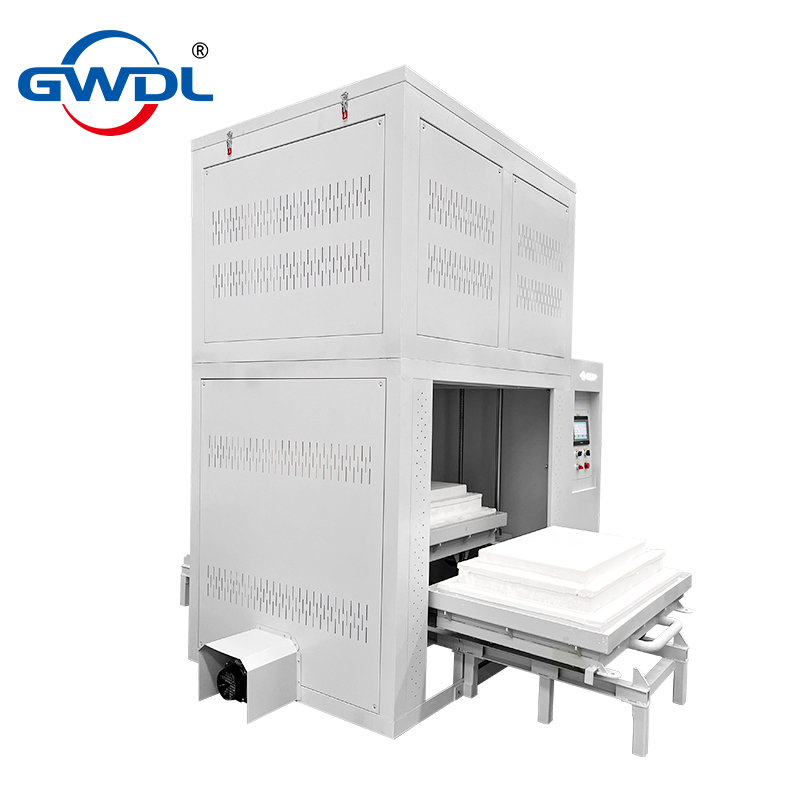

BOTTOM LOADING FURNACE

Specification (furnace chamber size) : 500×500×500 (mm), external dimensions: 2180-1200-1200

Design power: Maximum power 40kW. The power size is automatically adjusted according to the heating rate and can also be adjusted

Power supply AC: Three-phase five-wire 380V

Long-term operating temperature: 1600 degrees (surface temperature)

Temperature measurement element: B thermocouple, temperature measurement range 0-1820 degrees

The installation position of the heating element: all around

Temperature control accuracy: ±1 degree (integrated circuit control, no overshoot phenomenon)

Uniformity of furnace temperature: ±3 degrees

Heating rate: 1-15 degrees per minute

Heating element: U-shaped 1800 silicon-molybdenum rods are adopted

The travel mode of the furnace body: The inlet and outlet are equipped with stepless reduction motors, and the speed is adjustable

Furnace body lifting: The lifting of the loading platform adopts lead screw lifting, and the lead screw lifting position is at the rear side to avoid high temperature

 and achieve higher precision

The matching of refractory materials between the furnace opening and the loading platform: The matching of refractory materials between the furnace opening

 and the loading platform adopts a stepped cross-closure. The refractory materials have angles both up and down. The opening Angle of the loading platform increases,

 and the closing Angle gradually decreases as the loading platform closes

Loading platform load capacity: 200KG
