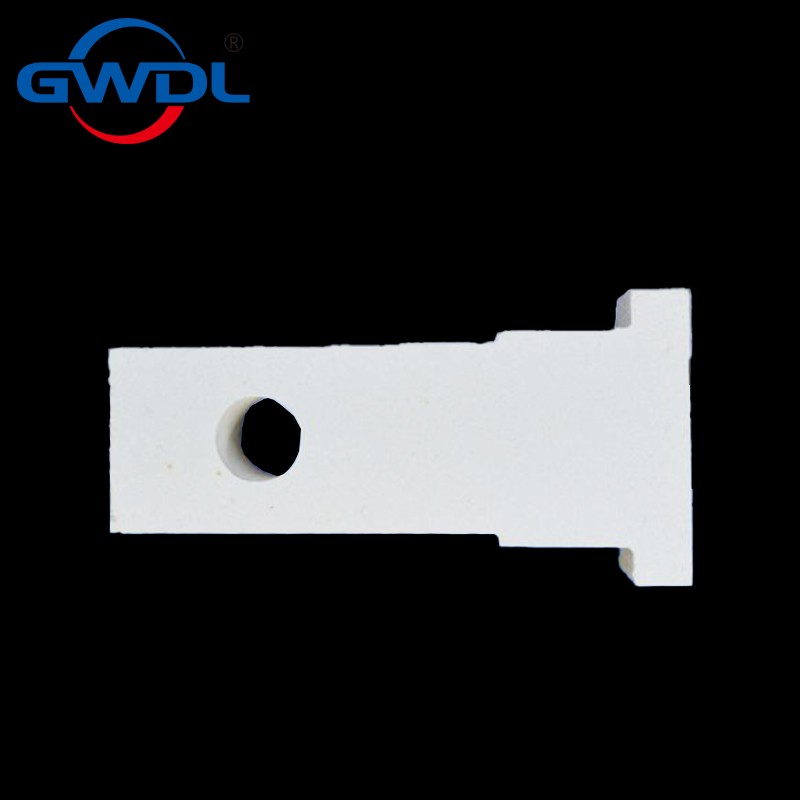

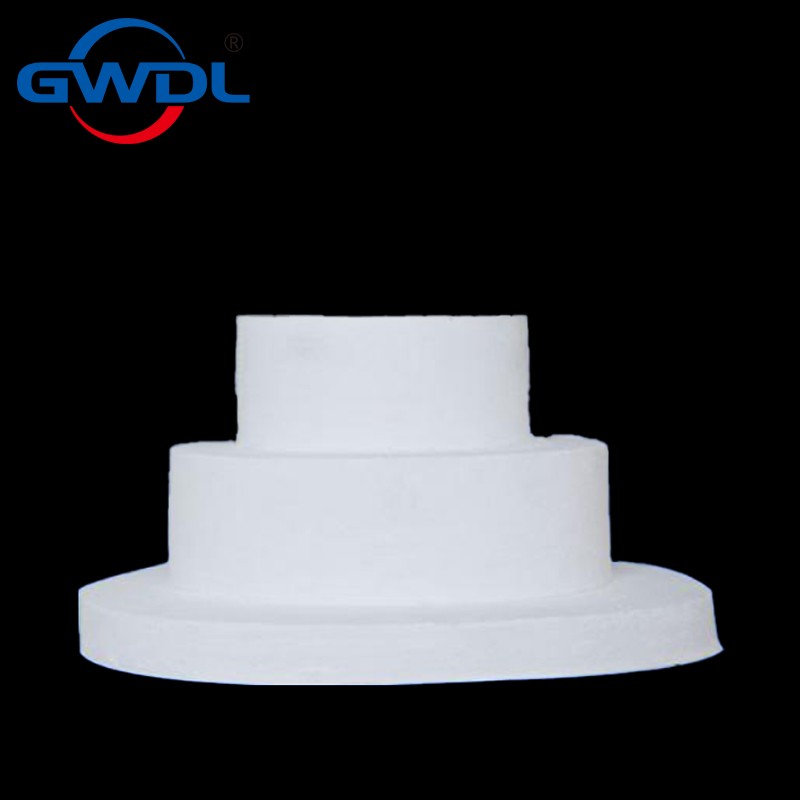

High Temperature Ceramic Fiber Special-shaped Product

The products are fabricated by suck-press combined method using polycrystalline alumina fiber as main starting materials, adding packing materials and binders. Special shaped products with different volume weights and specifications can be produced in accordance with design drawing of the user. The products can long-term serve at 1 750 ℃ and at 1 800 ℃ of the maximum, and have been used in many kilns to substitute for imported products, saving energy and cutting cost.

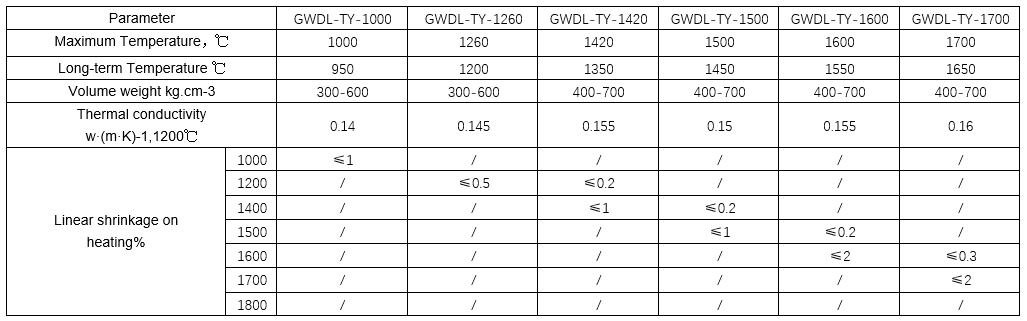

Product specification

  Model

Parameter

KD-TY-1000

KD-TY-1260

KD-TY-1420

KD-TY-1500

KD-TY-1600

KD-TY-1700

KD-TY-1800

KD-TY-1850

Maximum Temperature,℃

1000

1260

1420

1500

1600

1700

1800

1850

Long-term Temperature ℃

950

1200

1350

1450

1550

1650

1750

1800

Volume weight kg.cm-3

300-600

300-600

400-700

400-700

400-700

400-700

450-700

500-700

Thermal conductivity

w·(m·K)-1,1200℃

0.14

0.145

0.155

0.15

0.155

0.16

0.17

0.2

Linear shrinkage on

heating%

1000

≤1

/

/

/

/

/

/

/

1200

/

≤0.5

≤0.2

/

/

/

/

/

1400

/

/

≤1

≤0.2

/

/

/

/

1500

/

/

/

≤1

≤0.2

/

/

/

1600

/

/

/

/

≤2

≤0.3

/

/

1700

/

/

/

/

/

≤2

≤0.6

≤0.8

1800

/

/

/

/

/

/

≤2

≤0.5

Application

Used as thermal and electric insulating materials for high temperature electric furnace and heating units of equipment, and lining materials for tunnel kiln and roller kiln, Product specification, in accordance with design drawing of user.

RemarkProduct technique data are an average value base on the standard test, it will fluctuate in a certain range, is not the quality assurance data of the product.
